A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.

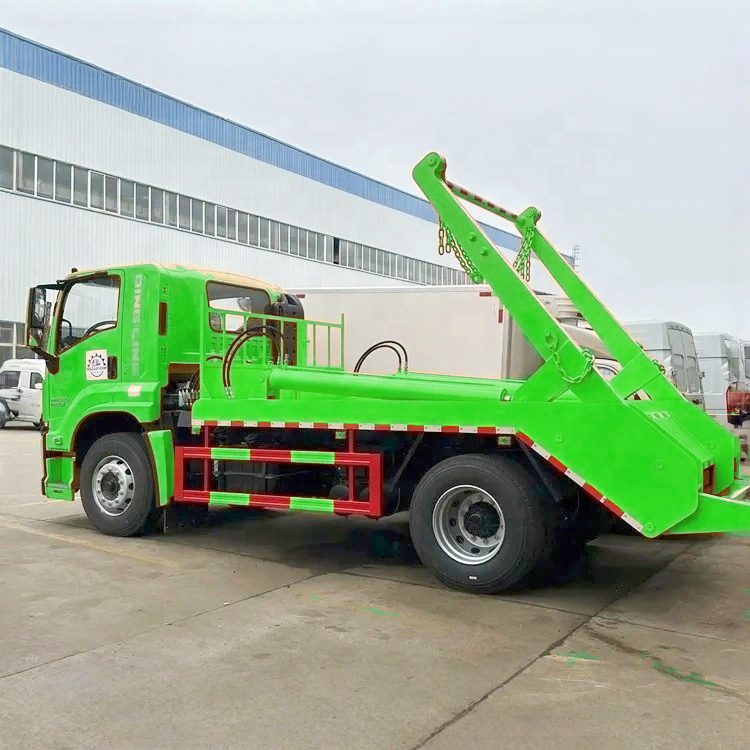

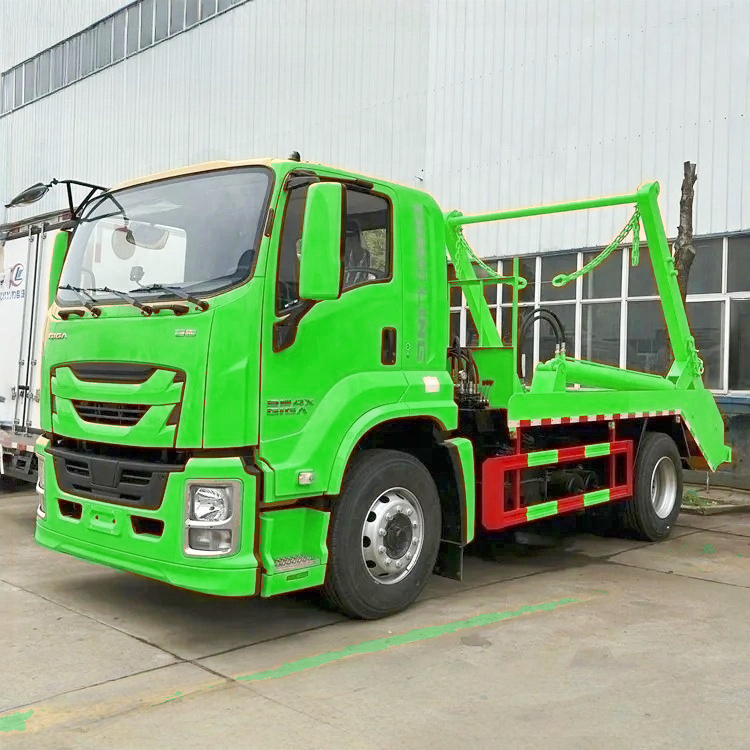

Vehicle name | Isuzu skip loader/swing arm garbage truck | |

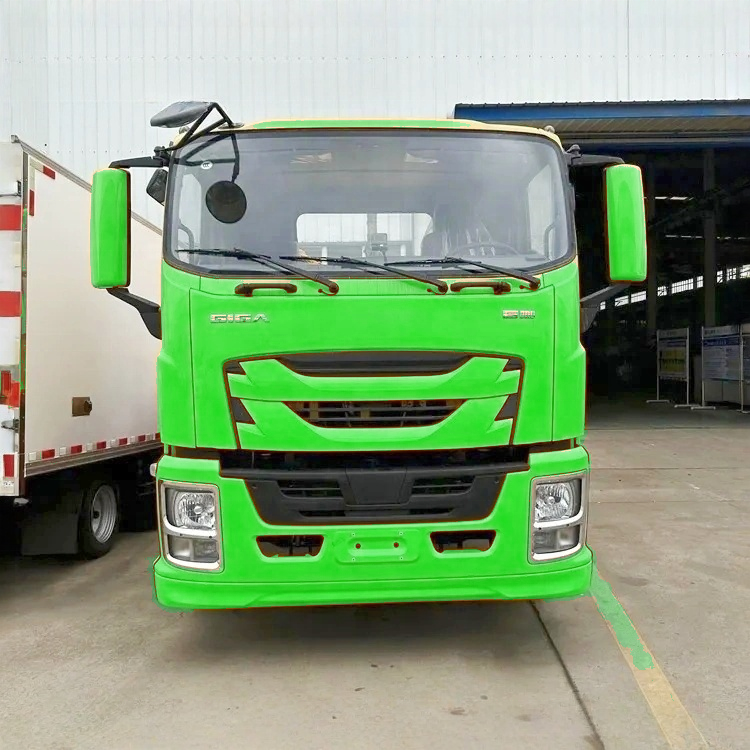

Cabin | Driving type 4x2 | |
Single, with A/C. Left/Right Hand Drive | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8600*2500*3500 |
Wheel base (mm) | 5000 | |
Wheel track (front/rear) (mm) | 1965/1860 | |
Approach/Departure angle(°) | 18/20 | |
Weight | Gross Weight | 18000 kg |
Curb Weight | 8600kg | |
Loading Capacity | 15000 kg | |
Front axles loading capacity | 6 ton | |
Rear axles loading capacity | 12ton | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | Isuzu |
Type | 4/6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 205/240 HP | |
Emission standard | Euro 2/3/4//5 | |
Gearbox | FAST, 5/6/8 forwards &1 reverse | |
Steering Gear | Hydraulic steering with power assistance | |
Fuel tank (L) | 100 /200/300L | |
Tire | 7.00R16/9.00 tires with one spare, totally 7 pcs. | |

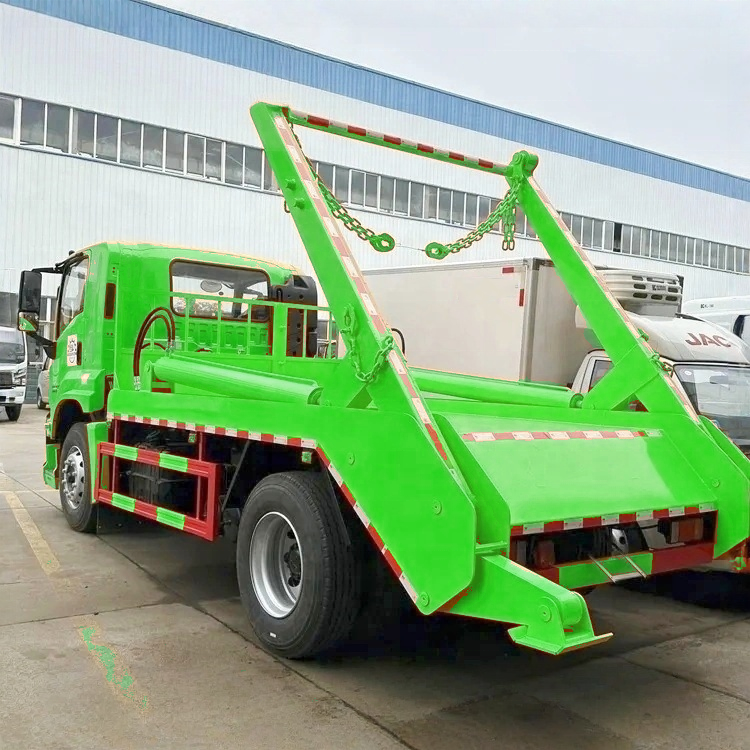

Swing arm system with cargo box | ||
· Garbage cargo box :5-14CBM , Carbon steel material , underground type or aboveground type can be optional. | ||
· PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg | ||
· Swing arm maximum pivot angle 145; hoisting time 30s; Unloading time 50s. | ||
