A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.

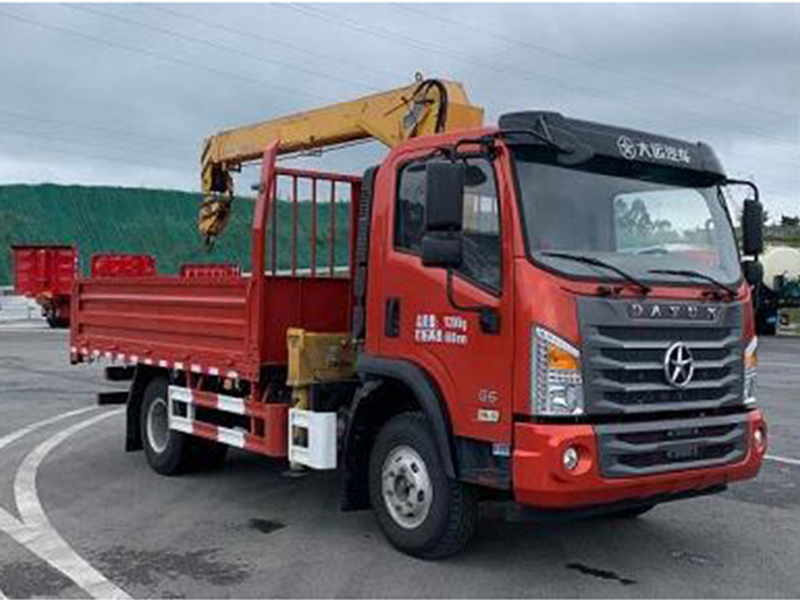

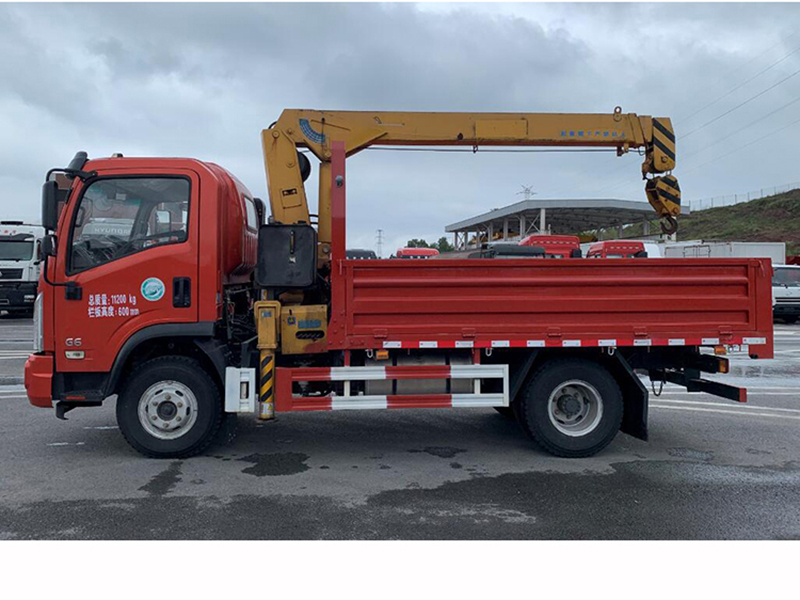

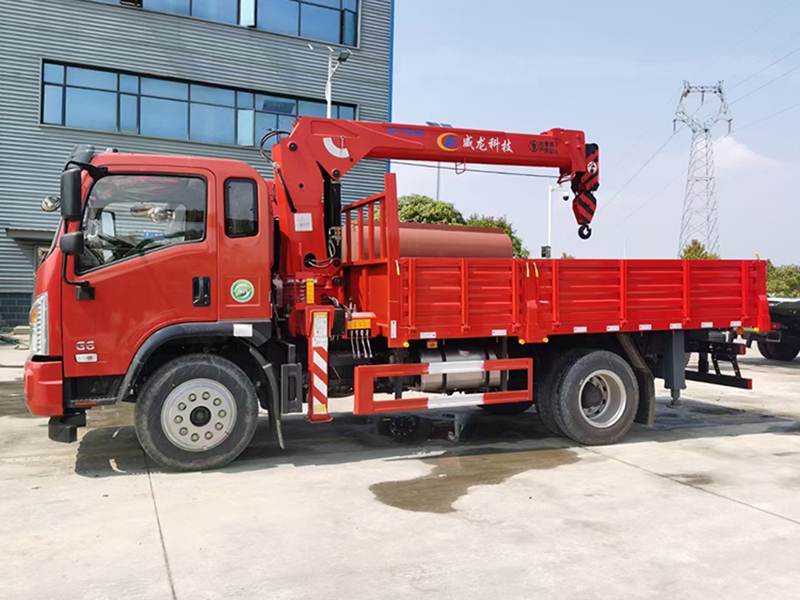

Dayun flatbed truck crane 5ton truck mounted crane telescopic boom
Crane truck is also called crane with truck , Truck mounted crane , crane mounted cargo truck , lorry mounted crane , truck mounted boom lift , truck with loading crane , boom crane , boom crane truck , articulated crane truck , Is used to lift the cargo , load , transport and unload heavy stuff .
There are telescopic boom cranes and knuckle boom cranes , covering a wide range of capacities as follow :
Telescopic boom crane :2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton
Knuckle boom crane : 1 ton , 2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton
Technical date :
Vehicle Parameters | |||
General | Vehicle Model | CLW5040JSQE | |
Vehicle Brand | XDR | ||
Chassis Brand | Dayun | ||
Overall Dimension(mm) | 5995×2150,2290×2980,3000 | ||
Box Dimension(mm) | 3300×2050×400 | ||
GVW/Curb/Rated loading Weight(kg) | 6495/4490/2050 | ||
Chassis Parameters | |||
Cab | Cab Seat | 2 | |
Air Conditioner | Optional | ||
Engine | Fuel Type | diesel | |
Engie Model | CY4100Q | ||
Engine Brand | Chaochai | ||
Power | 80hp | ||
Displacement(cc) | 3707 | ||
Emmission Standard | Euro3 | ||
Chassis | Drive Type | 4*2 | |
Transmission | 5 speed, Manual | ||
Wheelbase(mm) | 3300 | ||
Tyre Specification | 7.00-16 | ||
Tyre No.(pcs) | 6+1 | ||
Max Speed(km/h) | 90 | ||
Paint | Yellow | ||
Straight Crane structure parameters (changxing brand) | |||
working height(m) | 9 | Maximum working radius(m) | 7 |
Max Hoisting weight(ton) | 2 | Arm structure type | Three section |
Rotation | 360°continuous rotary | Outrigger | H type,front only |
