A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.

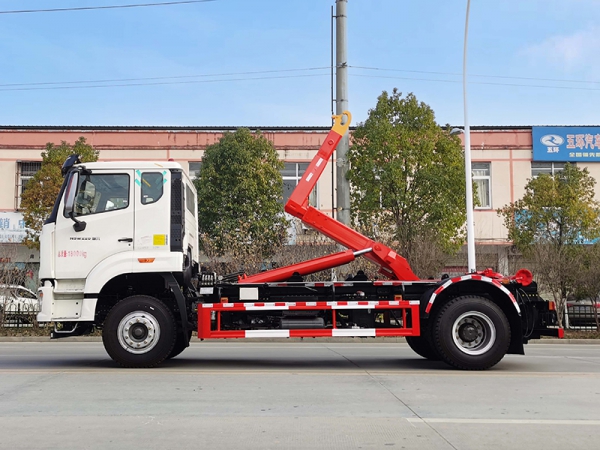

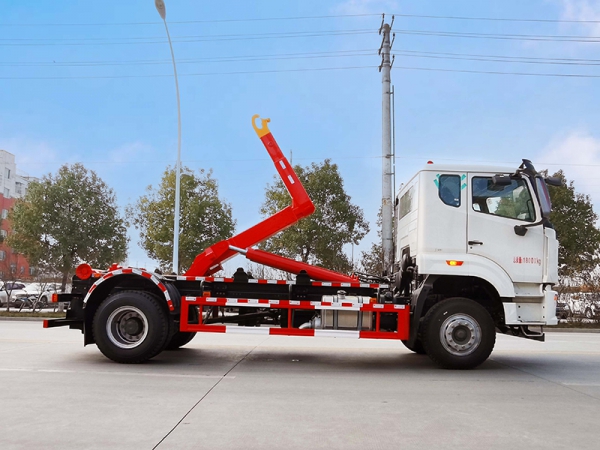

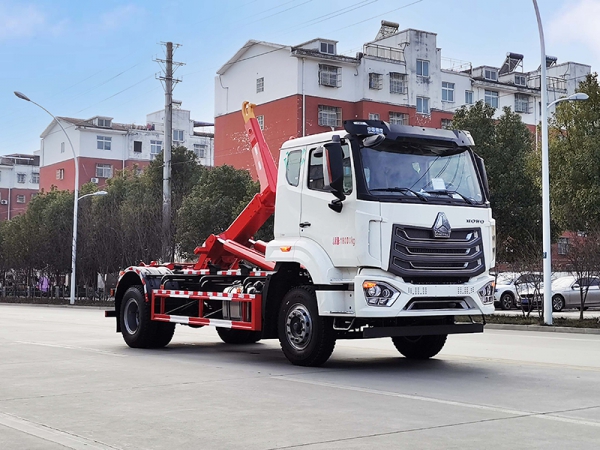

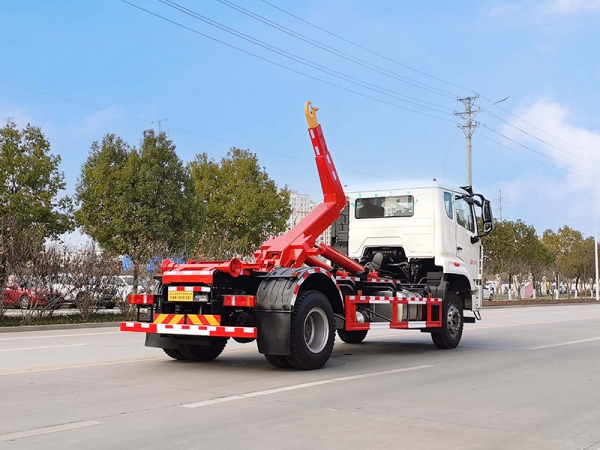

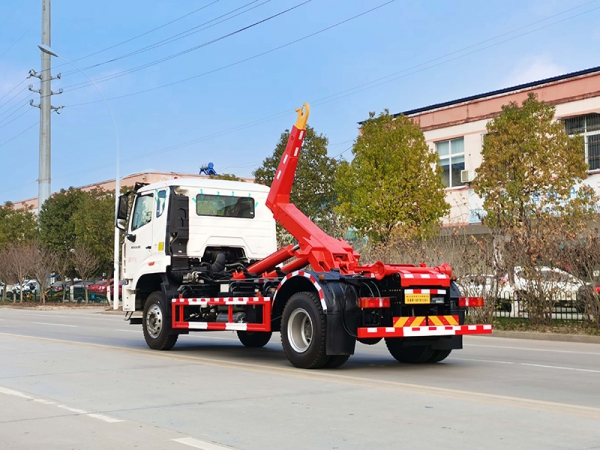

product name | SINOTRUK H OWO compartment detachable garbage truck | |
Vehicle parameters
| Rated occupants | 3 people |
Overall vehicle size (mm) | 7920×2550×3300 | |
Total mass (kg) | 18000 | |
Curb weight (kg) | 7950 | |
Rated mass (kg) | 9920 | |
ABS anti-lock braking system | have | |
Chassis parameters | Chassis brand/series | SINOTRUK H OWO |
model | ZZ1187K511JF1 | |
Wheelbase (mm) | 4500 | |
Tire specifications | 10.00R20 steel tire | |
Fuel type | diesel fuel | |
Emission Standards | GB17691-2018 Country VI | |
engine | WP4.6NQ220E61 | |
gearbox | 8 gears | |
pull arm | Hook manufacturer | Jiafeng Co., Ltd. | |
Hydraulic system | Type | Electric--Gas--Liquid | |
Main components | Hydraulic oil pump, operating valve, balance valve, hydraulic lock, hook arm main operating cylinder, sleeve arm inner sliding Cylinder, hydraulic oil pipe, hydraulic oil tank | ||
System rated pressure | 22MPa | ||
Hydraulic tank capacity | 120L | ||
Job performance parameters | Regular hook up | T | 16T |
Maximum horizontal sliding distance of hook arm | mm | 800/1000mm | |
Oil pump displacement | Ml/r | 80ml/r | |
Hook box time | s | ≤50 | |
Unpacking time | s | ≤50 | |
tipping angle | . | ≥50 | |
Hook center height of arm hook | mm | 1570 | |
Rail width | mm | 1060 | |
control voltage | V | 24V | |
